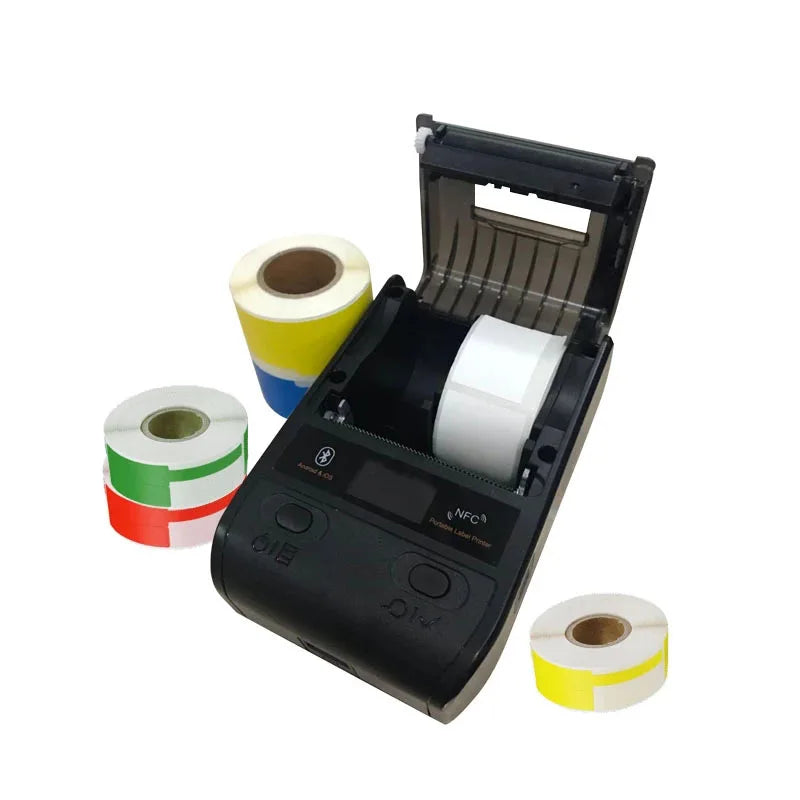

Portable Thermal BT Mini Mobile Android iOS 58mm Pocket receipt label sticker printer DP23
Portable Thermal BT Mini Mobile Android iOS 58mm Pocket receipt label sticker printer DP23
Couldn't load pickup availability
Portable Thermal BT Mini Mobile Android iOS 58mm Pocket receipt label sticker printer DP23
| Advantages of barcode printer CMX-DP23 |
1).Standard USB, BT2.0 & 4.0/SPP agreement or infrared / IRCOMM agreement (optional)
2).Compatible with ESC/POS
3).Suitable for all types of commercial retail POS systems
4).High capacity rechargeable lithium battery and stand by time 5-6days
5).Support to download the logo trademark
Compact design and high reliable with repair rate less than 1%
6).Blue tooth effective range around:6-9 meters
7).Multi -languages support,Arabic, Italian, Spanish...
8).SDK for Android and IOS available
9).Support multiple 1D and QR code types printing
10).Easy operating, free print demo for testing
11).Excellent after-sale service
12).12 months warranty on all products
Application Fields for portable printer CMX-DP23:
1.Lottery--- tickets
2.Food-- Animal Tracing/Food Safety
3.Warehousing--Inventory Management/Goods Delivery & Receiving &Picking
4.Parking-- Parking time and fee proof
5.Logistic-- Express invoice/delivery order
6.Mobile sales-- Invoice & Receipts infield service
7.Law enforcement/Policing--Traffic/city inspectors/commerce/health supervision
programmable thermal printer
| Specification for barcode printer CMX-DP23: |
| Description |
Parameters |
| Display Type |
OLED display |
| Print Method |
Direct thermal line |
| Print Color |
Black and white |
| Resolution |
203 dpi |
| Dots per Line |
384 dots/line |
| Print Speed |
20 ~ 50mm/s |
| Battery Runtime |
80 ~ 100m (12.5% print density) |
| Standby Time |
About 3 years (power off) |
| Battery Capacity |
1500mAh |
| Charge Mode |
5V USB |
| Charge Time |
4 ~ 5h |
| Power Bank Function |
Support |
| Paper Type |
· Thermal paper/ Thermal synthetic paper |
| Paper Form |
· Roll paper |
| Paper Size |
· 54(W) × dia.50 mm |
| Print Width |
· 48mm |
| Paper Thickness |
· 0.05 ~ 0.15 mm |
| Dimension |
· 122(L) × 82(W) × 60(H)mm |
| Standard Accessories |
· Power adapter, battery, paper adjusting plate, USB cable |
| IP Standard |
· IP54 |
| Operating Temperature |
0℃ ~ 45℃ |
| Interface |
· Micro USB, Blue tooth (Android, iOS) |
| Command Set |
· LPAPI®, ESC/POS compatible with instruction sets |
| Location Mode |
· Up-down dual-reflex, up-down correlation |
| Self-check Function |
· Cover open, paper out, low battery, overtemperature |
| Print Contents |
* Text, picture, line, graphics * 1D Barcode: CODE39, CODE128, EAN, UPC, other commonly used barcodes * 2D Barcode: QR Code, PDF417, DataMatrix |
